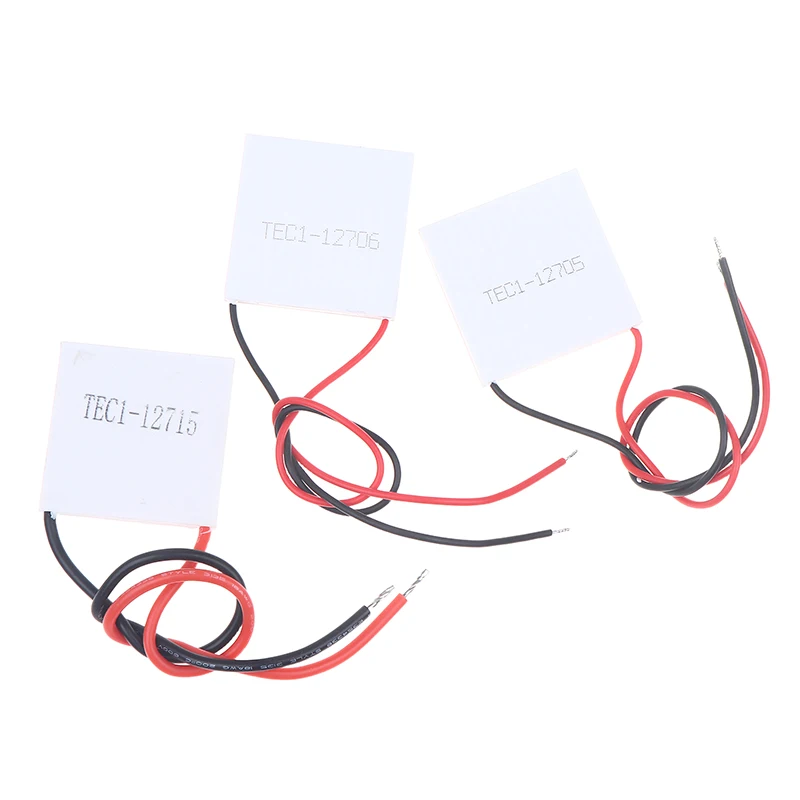

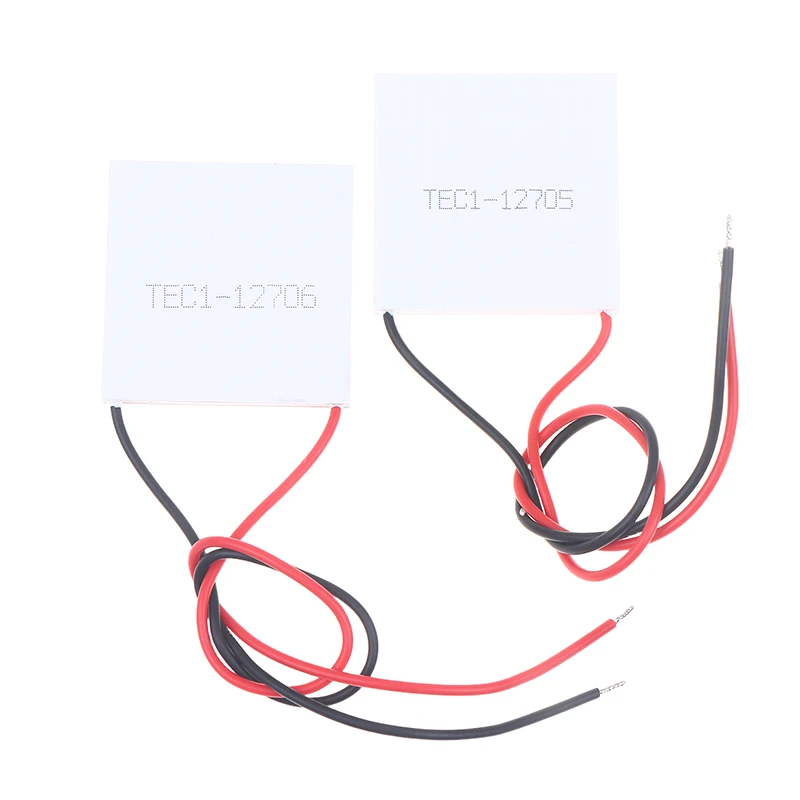

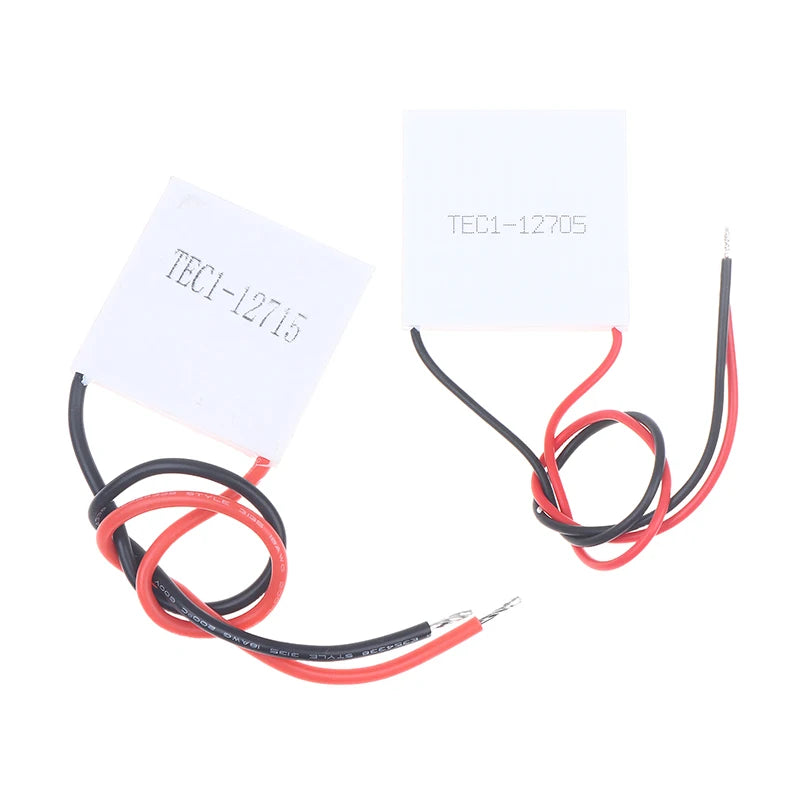

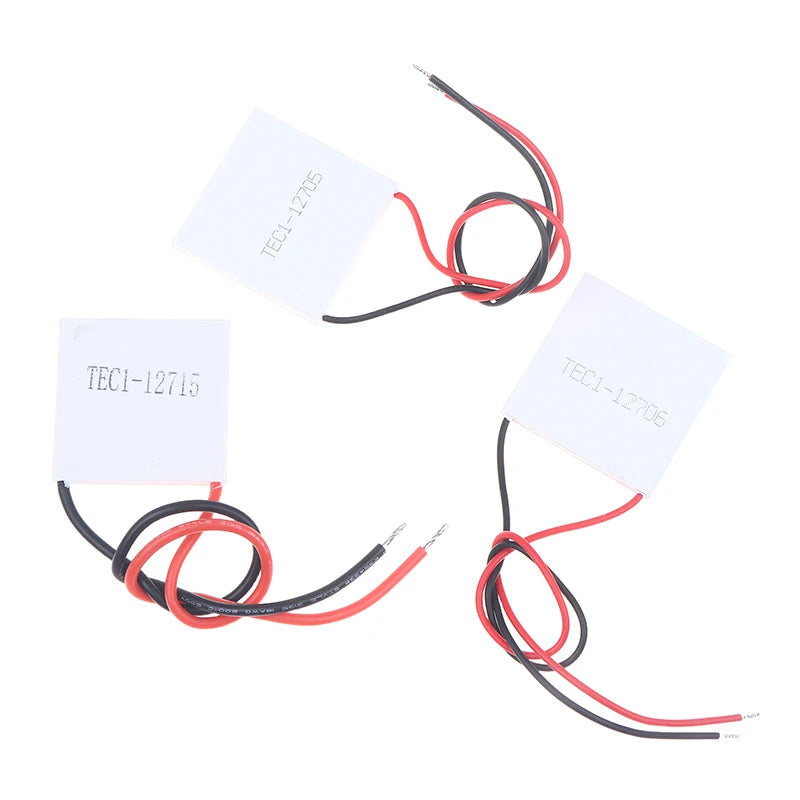

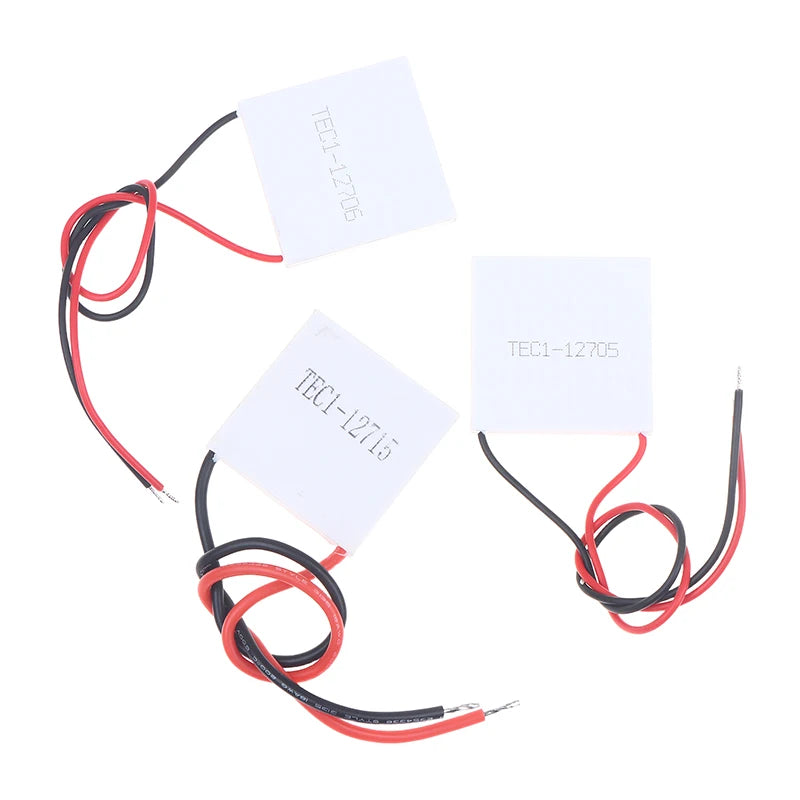

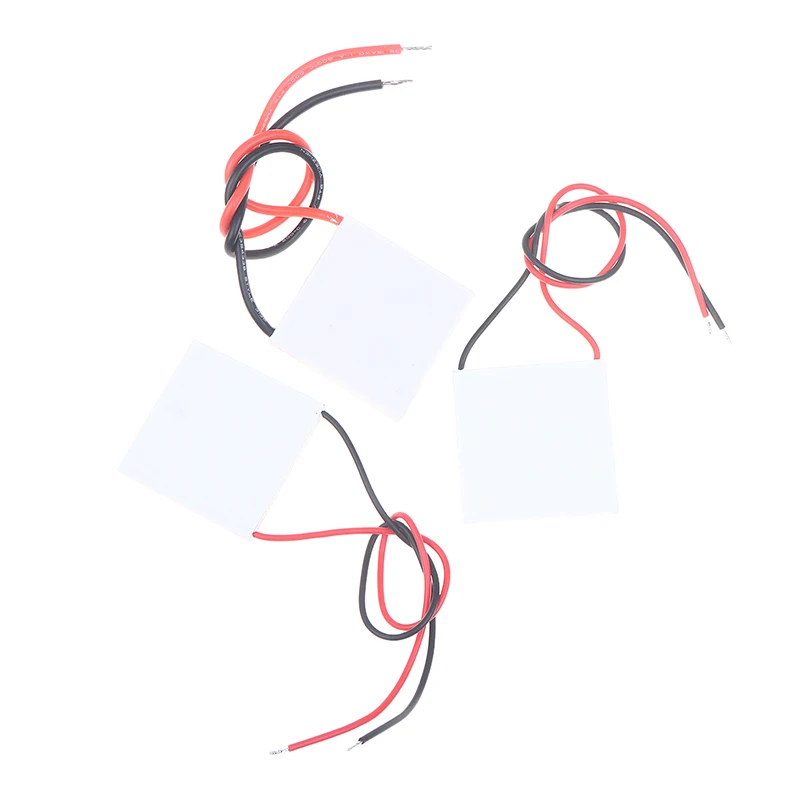

TEC1-12705 12706 TEC1-12715 Thermoelectric Cooler Peltier 40*40MM 12V Semiconductor Refrigeration Elemente Module

Specifications:

Material: Plastic

Size: As Shown In The Picture

Color: As Shown In The Picture

12705:

Chip Model: TEC1-12705

Dimensions: 40*40*3.8mm

Number of Component Pairs: 127

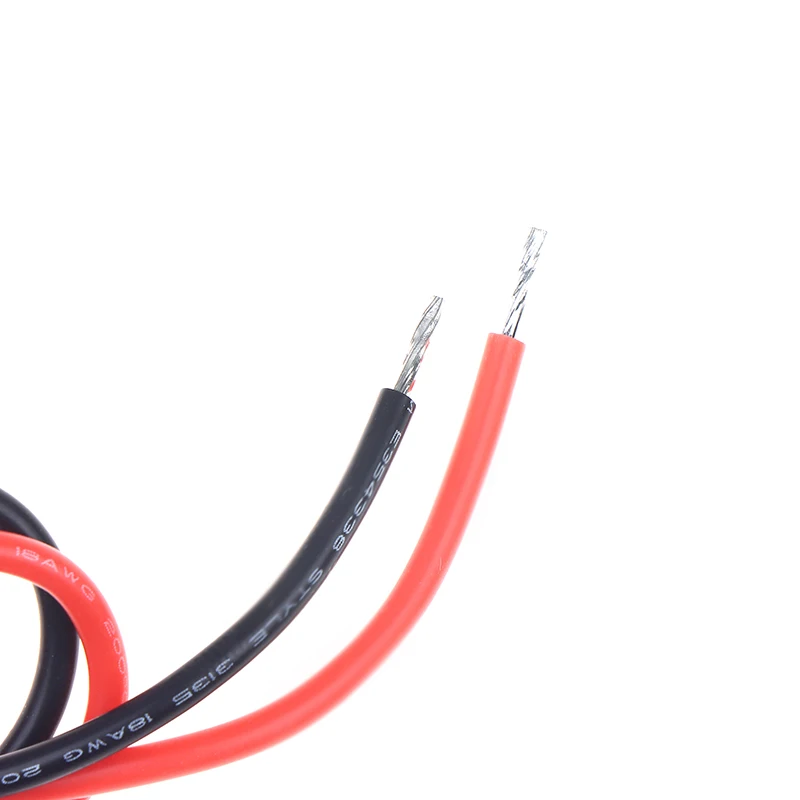

Wire Specifications: Lead length 100±5mm, RV standard wire, 5mm tin-plated single end

Internal Resistance: 2.4~2.7Ω (Ambient temperature 23±1℃, 1kHz Ac test)

Maximum Temperature Difference: Tmax (Qc=0) above 61℃.

Operating Current: Imax = 5 (at rated voltage startup)

Rated Voltage: DC12V (Vmax: 15.5V)

Cooling Power: Qcmax 45W

Assembly Pressure: 85N/cm²

Operating Environment: Temperature range -55℃83℃ (excessive ambient temperature will directly affect cooling efficiency)

Packaging Process: Standard 704 silicone rubber seal on all four sides

Packaging Standard: Foam box packaging, storage conditions: Ambient temperature -10℃40℃

Storage Conditions: -40~60℃

12706:

Chip Model: TEC1-12706

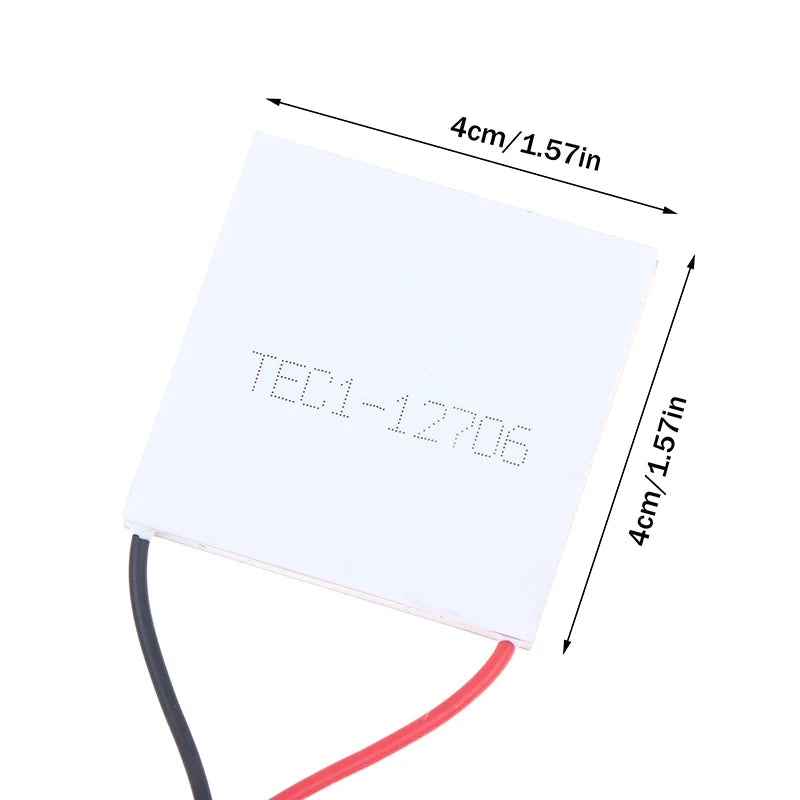

External Dimensions: 40*40*3.75mm

Internal Resistance: 2.1~2.4Ω (Ambient temperature 23±1℃, 1kHz Ac test)

Maximum Temperature Difference: Tmax (Qc=0) above 59℃.

Operating Current: Imax = 4.3-4.6A (at rated 12V)

Rated Voltage: 12V (Vmax: 15V starting current 5.8A)

Cooling Power: Qcmax 60-72W

Operating Environment: Temperature range -55℃83℃ (Excessively high ambient temperature directly affects cooling efficiency)

12715:

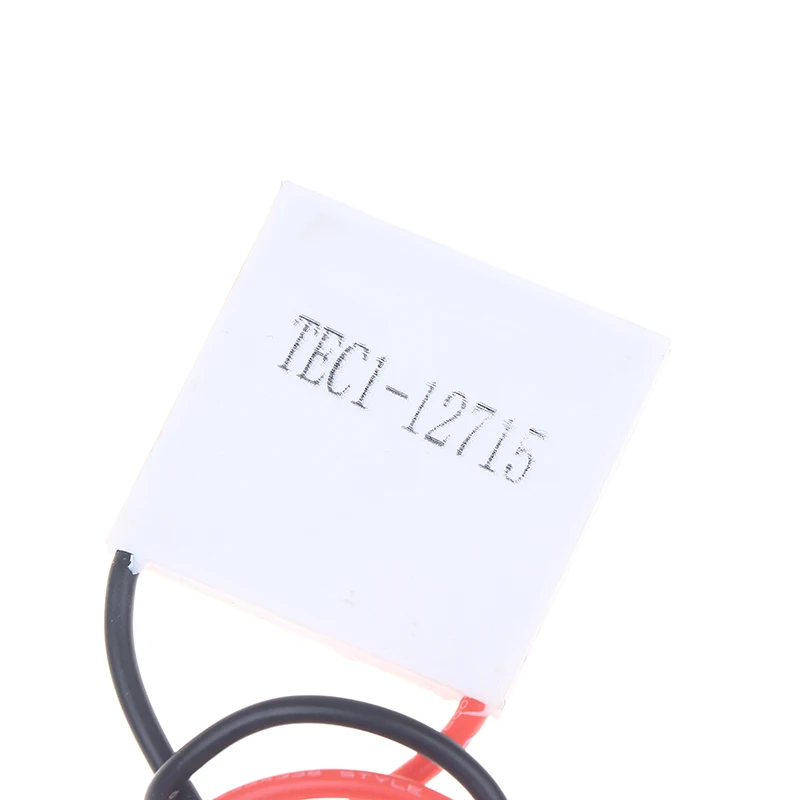

Product Model: TEC1-12715

Maximum Voltage: 15.4V

Maximum Current: 15A

Cooling Capacity: 134W

Cooling Temperature Range: 65℃

Dimensions: 40*40*3.3mm

Package Included:

1 x Module

Note:

1. Please note that the photo does not show actual size please refer to Description for size details.

2. Please allow differences due to manual measurement thanks.

3. Due to the difference between different monitors the image may not reflect the actual color of the item.
